A Lidar + RGB Solution for Aerial Surveying

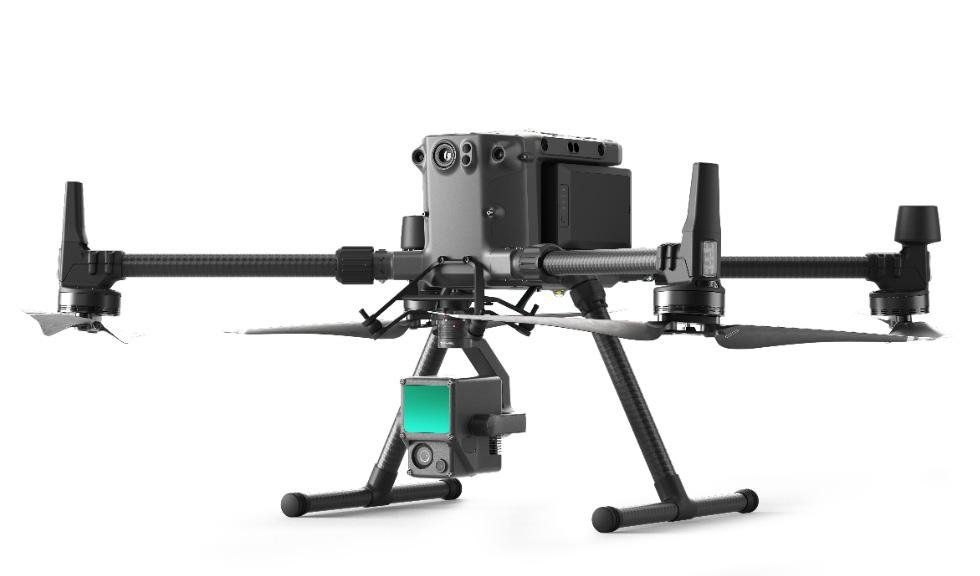

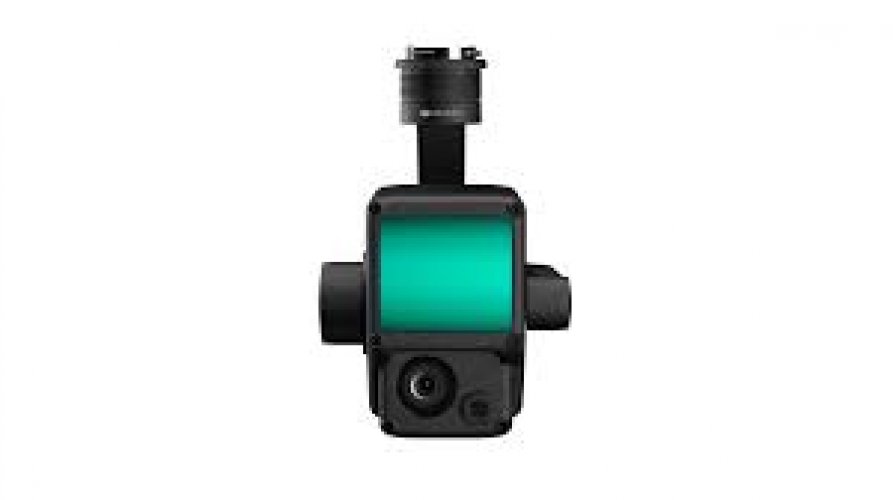

The Zenmuse L1 integrates a Livox Lidar module, a high-accuracy IMU, and a camera with a 1-inch CMOS on a 3-axis stabilized gimbal. When used with Matrice 300 RTK and DJI Terra, the L1 forms a complete solution that gives you real-time 3D data throughout the day, efficiently capturing the details of complex structures and delivering highly accurate reconstructed models.

Specifications

  • Manufacturers
  • France
  • Aerial Photography, Construction & Real Estate, Forestry & Agriculture, Infrastructure & Transport, Power & Utilities, Science & Research, Surveillance & Mapping
  • Air
  • -10 to 40 ° C
  • 152×110×169 mm
  • DJI Terra
  • DJI Terra supports exporting standard format point cloud models: Point cloud format: PNTS/LAS/PLY/PCD/S3MB format
  • 3 axis, Pan, Tilt, Toll
  • Detachable DJI SKYPORT
  • Follow/Free/Re-center
  • 256 GB
  • Photo/IMU/Point cloud data storage/GNSS/Calibration files
  • microSD: Sequential writing speed 50 MB/s or above and UHS-I Speed Grade 3 rating or above; Max capacity: 256 GB
  • SanDisk Extreme 128GB UHS-I Speed Grade 3 SanDisk Extreme 64GB UHS-I Speed Grade 3 SanDisk Extreme 32GB UHS-I Speed Grade 3 SanDisk Extreme 16GB UHS-I Speed Grade 3 Lexar 1066x 128GB U3 Samsung EVO Plus 128GB
  • Matrice 300 RTK
  • -20° to 60° C
  • IP54
  • 450 m @ 80% reflectivity, 0 klx 190 m @ 10% reflectivity, 100 klx
  • 240,000 pts/s
  • 480,000 pts/s
  • 10 cm @ 50 m
  • 5 cm @ 50 m
  • Reflectivity, Height, Distance, RGB
  • 3 cm @ 100 m
  • 3
  • Non-repetitive scanning pattern, Repetitive scanning pattern
  • 70.4°
  • 77.2°
  • 70.4°
  • 4.5°
  • Class 1 (IEC 60825-1:2014) (Eye Safety)
  • 200 Hz
  • ±8 g
  • ±2000 dps
  • 0.3°
  • 0.15°
  • 0.05°
  • 0.025°
