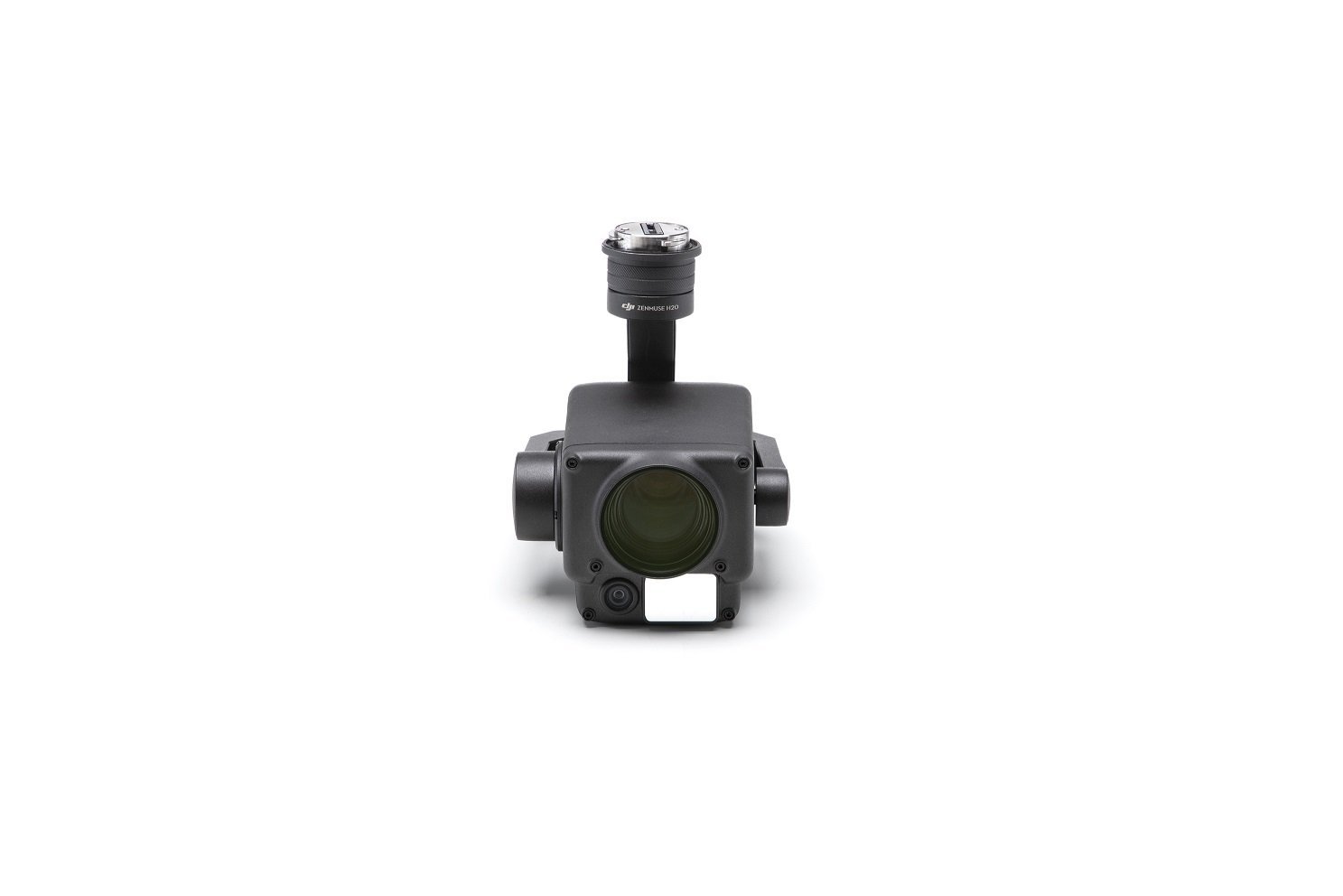

DJI Zenmuse H20

0 reviews

Price: $3,175

Share:

Short Description

Description

“H” For Hybrid

Multi-sensor payloads that bring a whole new meaning to mission efficiency. The unique intelligence and integrated design provide unprecedented aerial imaging capabilities for a range of commercial drone applications.

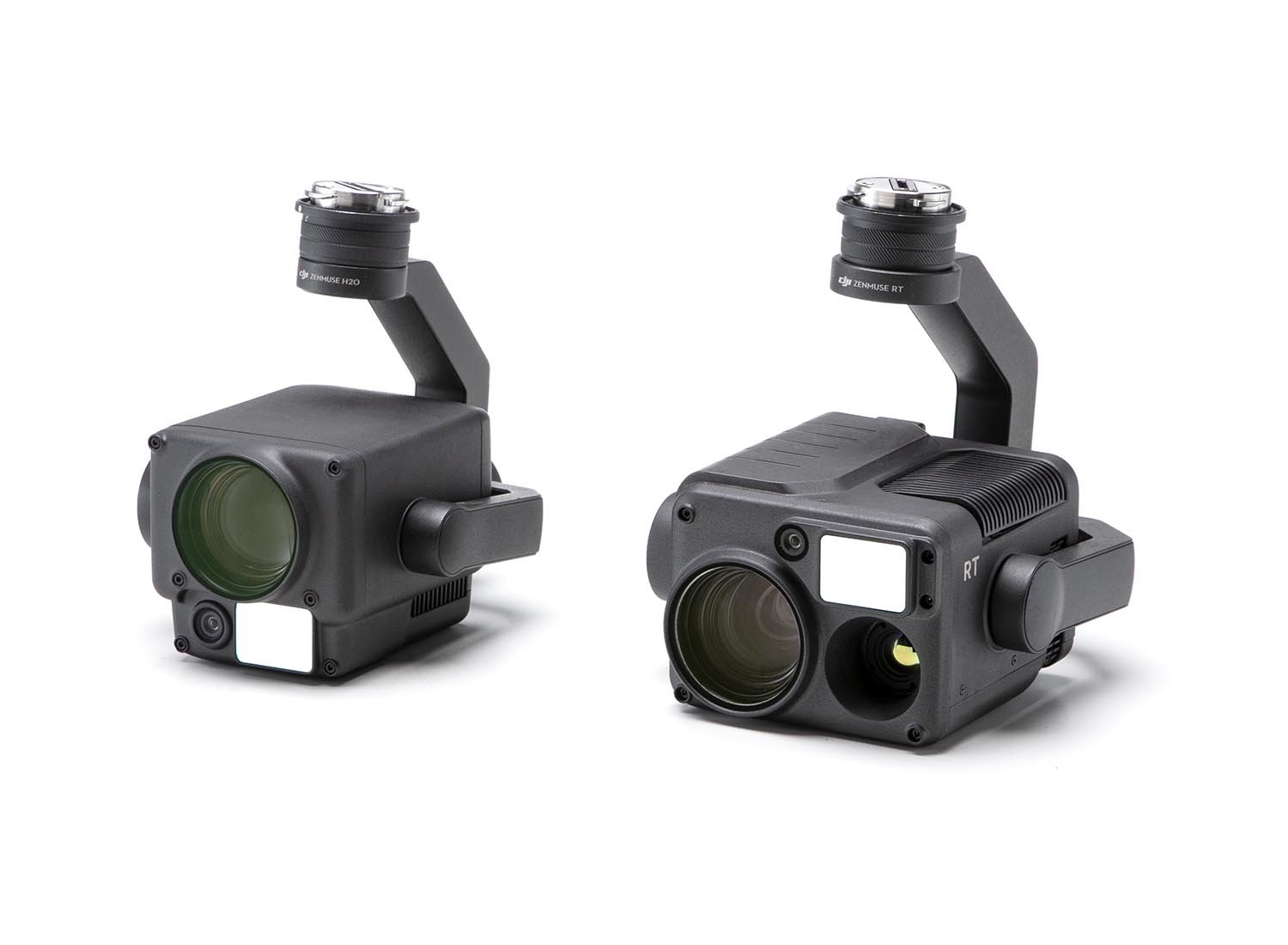

Welcome to DJI’s first hybrid sensor solution – the Zenmuse H20 Series.

Capture everything. Up close or from a distance. In true living color or thermal. An integrated laser rangefinder (LRF) measures the distance to an object at up to 1200 m away. A powerful, integrated payload that unleashes advanced intelligent capabilities for DJI’s industrial drone platforms.

Specifications

  • Reseller
  • France
  • Aerial Photography, Archeology & Monuments, Construction & Real Estate, Disaster Management / First responders, Environment & Wildlife, Forestry & Agriculture, Infrastructure & Transport, Power & Utilities, Science & Research
  • Air
  • 150×114×151 mm
  • 678
  • Detachable
  • ±0.01°
  • Pitch: -132.5° to +42.5° Yaw: ±330° Roll: -90° to +60°

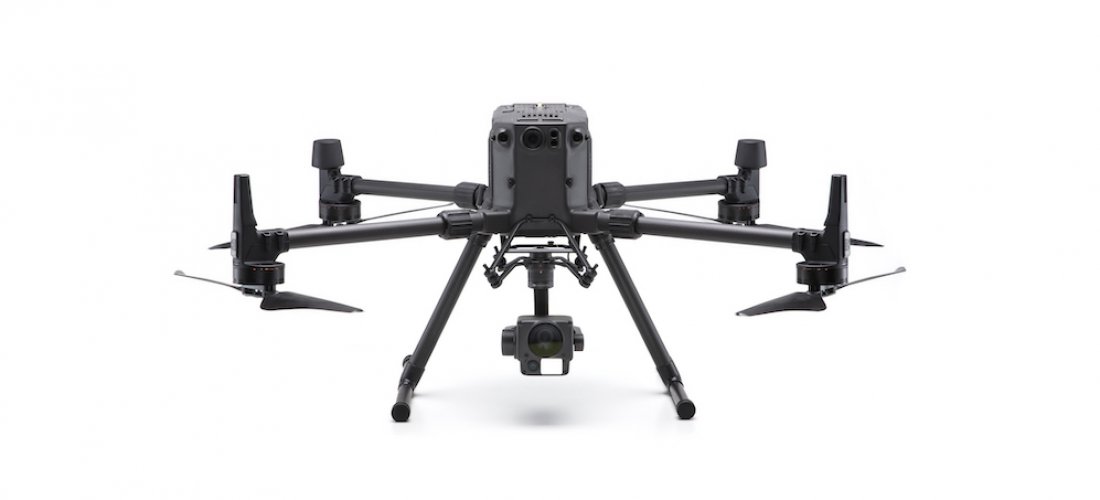

  • Matrice 300 RTK
  • -20° to 60° C
  • IP44
  • Class 1M (IEC 60825-1:2014)
  • 1/1.7" CMOS, 20 MP
  • DFOV: 66.6°-4° Focal length: 6.83-119.94 mm (equivalent: 31.7-556.2 mm) Aperture: f/2.8-f/11 (normal), f/1.6-f/11 (night scene) Focus: 1 m to ∞ (wide), 8 m to ∞ (telephoto)
  • MF/AF-C/AF-S
  • Auto, Manual
  • ±3.0 (1/3 increments)
  • Spot metering, Center-weighted metering
  • Supported
  • 1 ~ 1/8000 s
  • Video: 100 - 25600 Photo: 100 - 25600
  • 3840x2160@30fps, 1920x1080@30fps
  • MP4
  • Supported
  • 5184 × 3888
  • JPEG
  • 1/2.3" CMOS, 12 MP
  • DFOV: 82.9° Focal length: 4.5 mm (equivalent: 24 mm) Aperture: f/2.8 Focus: 1 m to ∞
  • Auto
  • ±3.0 (1/3 increments)
  • Spot metering, Center-weighted metering
  • Supported
  • 1 ~ 1/8000
  • Video: 100 - 25600 Photo: 100 - 25600
  • 1920×1080@30fps
  • MP4
  • Supported
  • 4056 x 3040
  • JPEG
  • N/A
  • N/A
  • N/A
  • N/A
  • N/A
  • N/A
  • N/A
  • N/A
  • 200×（DFOV：0.5°，EQV：4800mm）
  • N/A
  • One click to save the video or picture of 3 cameras (zoom, wide and thermal camera) simultaneously
  • N/A
  • Double click on the wide/thermal camera view, then the system will automatically move the gimbal to focus on the point of interest
  • N/A
  • Frame an area of interest in wide camera view, and the zoom camera will automatically capture a set of 20 MP images of the area. These images are stored together with an overview image that can be viewed in greater detail.
  • N/A
  • N/A
  • Supported (zoom camera)
  • N/A
  • 905 nm
  • 3-1200 m (to a vertical surface with ≥12m diameter and 20% reflection rate)
  • 23×（DFOV：4°，EQV：556.2mm）
